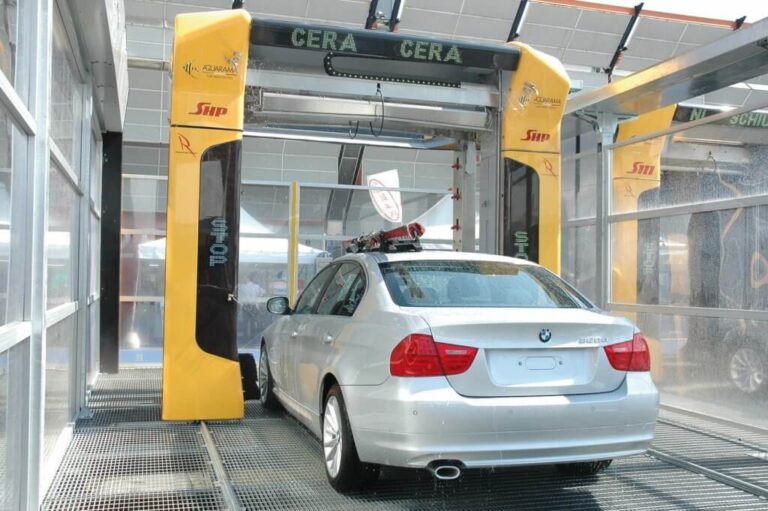

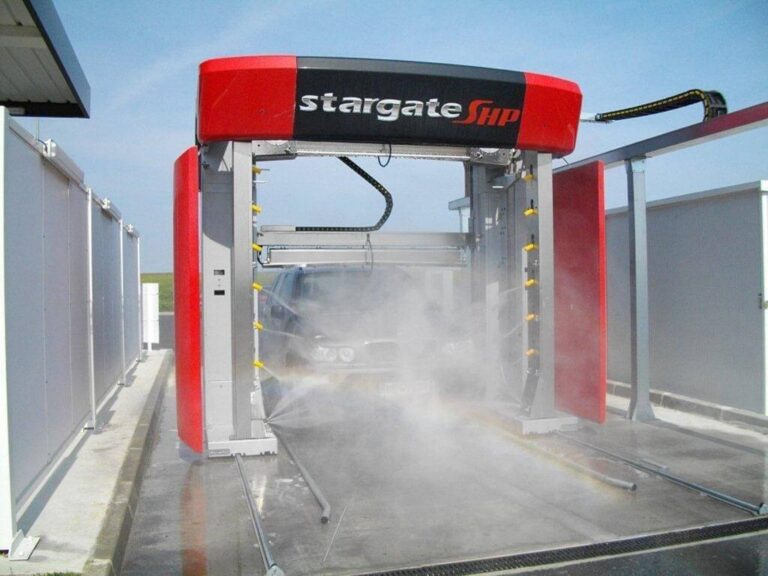

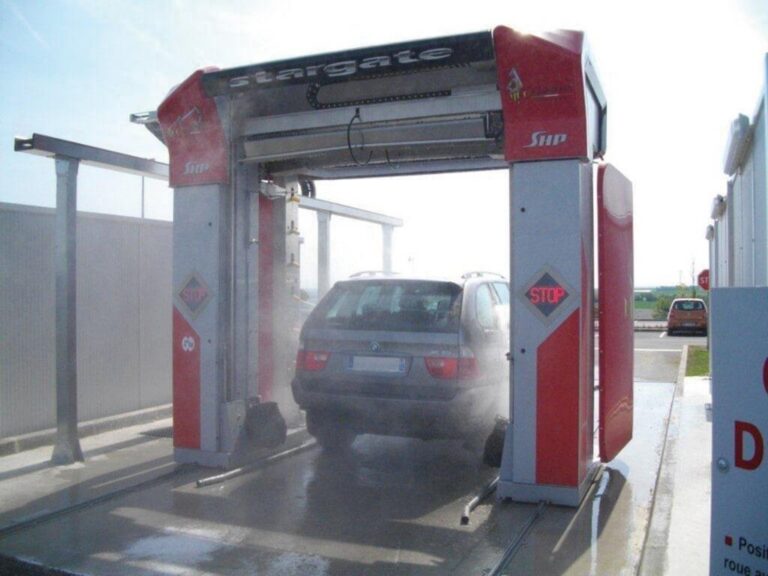

Stargate SHP

Gantry Car Wash

Advanced technology for a lasting success and reliability

Technical features

Structure

• Galvanized and painted steel frame
• ABS claddings*
• Direct gantry drive with inverter
• High resistance aviation type rivets
• Stainless steel bolts

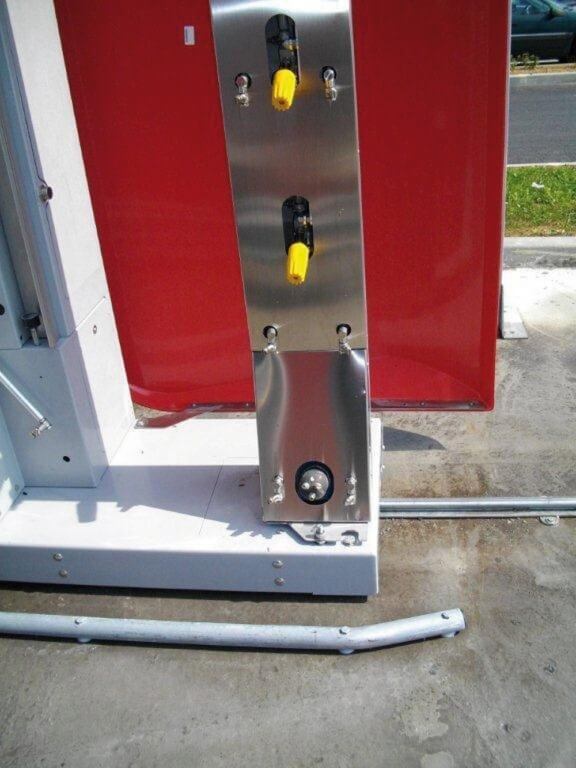

High Side Pressure

• 5 rotating and tilting nozzles for high impact force and complete body coverage
• Stainless steel structure
• It may be split into 3 sections according to the vehicle’s profile
• Motorised rotary head with 2 rotary nozzles for wheels and low sides

High Top Pressure

• 6 rotating and tilting nozzles for high impact force and complete body coverage
• Stainless steel structure following the vehicle’s profile and adjustable in 4 tilt positions
• Minimal height from ground to clean number plates and bumpers
• Double front and rear pass
• Electrical lifting with Inverter
• Stainless steel guide rails

Drying *

• Upper blade in stainless steel following car profile and tilting in 3 positions
• Electrical lifting with Inverter
• Stainless steel guide rails
• Side drying with 2 electric blowers. (Various power combinations available)

Standard equipment

• Hydraulic system with solenoid valves and special manifolds
• Shampoo dosing pump
• Wax dosing pump
• Control with display and wall button board
• Self-Service arrangement fully integrated in the machine’s electronics

* Optional
